Gasifier Crematorium

We manufacture double chamber ( Primary chamber and Secondary chamber) wood gasifier cremation furnace with following crematorium equipments :

Gasifier Cremation Furnance

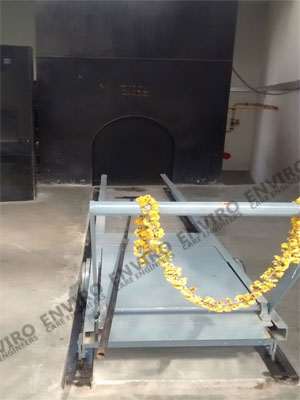

  • Manually operated body charging Trolley.

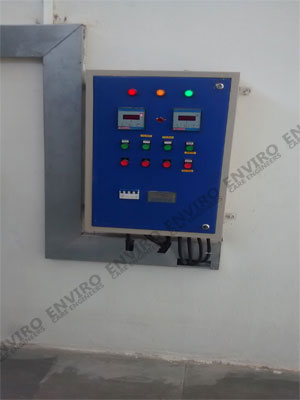

  • Gasifier Crematorium Equipment Control Panel Board.
  • Cremation furnace with up down door operation by automated gear box motor mechanism.
  • Wood gasifier with Hopper, Ladder and all accessories.
  • Wood Cutting machine.
  • Wood based Gasifier Producer gas Burners system along with stand by manually operated LPG Gas burner system for Primary chamber and Secondary Chamber in the cremation furnace.

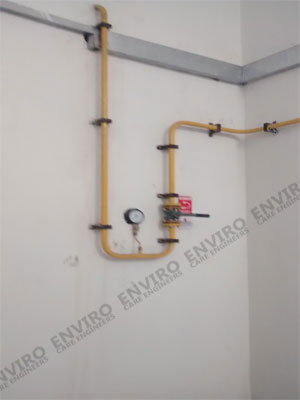

  • Producer Gas pipe line arrangement to all burners in the Gasifier Cremation chamber.
  • Pollution control equipments – Venturi scrubber with cyclone separator.
  • Pollution control equipment – ID fan and 30 meters stack chimney.
  • Thermo couples, complete control switches and digital meters in Equipment panel board.
  • Fresh Air blower.

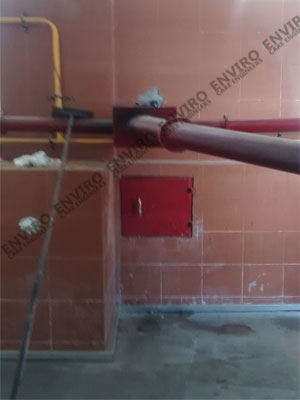

  • Connecting MS pipe lines.

Gasifier Crematorium Equipments

Biomass Gasifier crematorium technical data

Biomass Gasifier crematorium technical data
1 Gasifier Cremation Furnace Double Cremation Chamber – Primary and Secondary Chamber
2 Gasifier Cremation Fuel Wood/ Coconut Shell
3 Cremation time per body in Gasifier Crematorium 60-90 minutes
4 Cremation Ash out Time Within 60 minutes after cremation
5 Cremation fuel consumption – per body. Wood 80-100 Kgs per body is required in Gasifier Crematorium.
6 Cremation cost Please check with your local cremation provider.
7 Cremation Air Pollution Equipments Cyclone separator with venturi scrubber with wash column.
8 Cremation Water Pollution system Effluent Treatment Plant
9 Crematory Equipment Operation Training Yes we provide Gasifier crematory operation training
10 Crematorium equipments maintenance Yes we provide Gasifier crematory equipments maintenance for 1 year from the date of installation of equipments and further maintenance can be enter into an AMC.
11 Is Crematorium Equipments repairs and service works available??? Yes our company would undertake crematorium equipments repairs and service works in Gasifier Crematorium.
12 Are all crematorium equipments spares and accessories will be supplied??? Yes our company would supply and install all spares and accessories required for the Gasifier crematorium.
